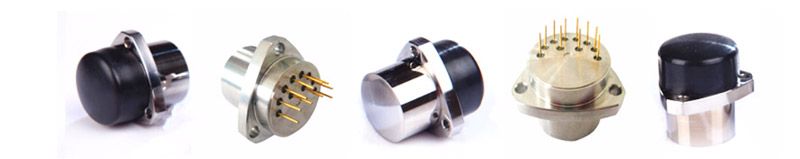

SNJ-3000 石英挠性加速度计 / Quartz flexible accelerometer
北京长光星晨科技有限公司主要生产军用、民用石英挠性加速度计。公司拥有技术精湛、经验丰富的技术人员和有很强的精密加工能力和丰富的装配经验。具有开发、设计能力的工程技术人才和管理人员。公司秉着：以技术为根本，以质量为生命，以客户为中心的方针，建立完善的设计、生产和售前售后服务体系，确保公司长期稳定的发展。
Hebei inertial space technology Co., Ltd of the main production of military and civilian quartz flexible accelerometer. The company has a skilled and experienced technical staff and has precision strong ability and rich experience in assembly. With the development, the design capability of the engineering and technical personnel and management personnel. The company holds: technology as a fundamental, to the quality of life, customer is the center of policy, establish and improve the design, production and after-sales service system, to ensure that the company's long-term stable development.
SNJ-3000型石英挠性加速度计具有精度高、抗干扰能力强、测量范围宽、超载能力强的特点，是惯性导航和制导系统中不可缺少的关键器件之一。该产品已成功用于高精度惯性导航系统、运载火箭、远程弹道导弹、宇宙飞船、中远程导弹、战术导弹、军用飞机、舰船等方面。
SNJ-3000 quartzflexible accelerometer has the characteristics of high precision, strong anti-interference ability, wide measurement range and high overload capacity. It is one of the indispensable key components in inertial navigation and guidance system. The product has been successfully used in high precision inertial navigation systems, launch vehicles, long-range ballistic missiles, spacecraft, long-range missiles, tactical missiles, military aircraft, ships and so on.

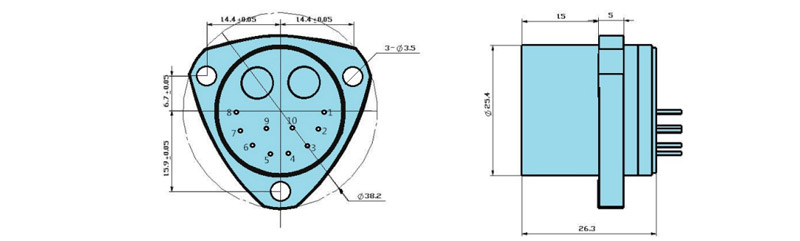

石英挠性加速度计的尺寸(mm) / Quartz flexure Accelerometers dimensions(mm)
石英挠性加速度计的引脚定义 / Quartz flexure Accelerometers pin definition
| 引脚号 (Pinnumber) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 功能(function) | 力矩器低 端（输出） | 力矩器高端 | 负电源 -15VDC | 正电源+15VDC | 地线 | 自检端 | 差动 电容1 | 差动电容2 | 负稳压器输出 | 正稳压 器输出 |
| 符号(Symbol) | L-(output) | L+ | VEE | VCC | GND | TEST | C- | C+ | VR- | VR+ |
石英挠性加速度计SNJ-3000技术参数
Accelerometer SNJ-3000 Performance Characteristics
注：外形尺寸和技术参数可根据要求订制。
Note: Dimensions and test data are available on request.
| 性能参数 Features | SNJ-3000-030 | SNJ-3000-020 | SNJ-3000-010 |
| 量程[g] Input Rangel | ≥±60 | ≥±60 | ≥±60 |
| 偏值[mg] Bias | ≤±4 | ≤±4 | ≤±4 |
| 偏值稳定性 [µg] Stability Bias stability | ≤40（12个月） | ≤35（6个月） | ≤25（3个月） |
| 偏值温度系数 [µg/ºC] Bias thermal coefficient | ≤±40 | ≤±40 | ≤±40 |
| 标度因数[mA/g] Scale factor | 0.90～1.40 | 0.90～1.40 | 0.90～1.40 |
| 标度因数稳定性[ppm] Scale factor stability | ≤50（12个月） | ≤40（6个月） | ≤30（3个月） |
| 标度因数温度系数[ppm/ºC] Scale factor thermal coefficient | ≤±40 | ≤±40 | ≤±40 |
| 二阶非线性系数[µg/g2] 2 order nonlinear coefficient | ≤±20 | ≤±20 | ≤±20 |
| 二阶非线性系数稳定性[µg/g2] 2 order nonlinear coefficient stability | ≤25（12个月） | ≤25（6个月） | ≤25（3个月） |
| 阈值/分辨率 [µg] Resolution/Threshold | ＜5 | ＜5 | ＜5 |
| 噪声[µA] Noise | ＜10 | ＜10 | ＜10 |
| 带宽 [Hz] Bandwidth | ≥350 | ≥350 | ≥350 |
| 安装角 [µrad] Axis Misalignment | ≤±100 | ≤±100 | ≤±100 |
| 安装角稳定性[µrad] Axis Misalignment Stability | ≤±40 | ≤±40 | ≤±40 |
| 工作环境 Environment | SNJ-3000-030 | SNJ-3000-020 | SNJ-3000-010 |
| 工作温度范围 [ºC] Operating Temperature Range | －55～＋95 | －55～＋95 | －55～＋95 |
| 冲击试验[g] Shcok 1/2 sine | 100 | 100 | 100 |
| 振动试验[g] Vibration Peak Sins | 5 | 5 | 5 |
| 低气压[133pa、10min] Air tightness | ＜5﹪ | ＜5﹪ | ＜5﹪ |
| 电源条件 Power condition | SNJ-3000-030 | SNJ-3000-020 | SNJ-3000-010 |
| 供电电压 [VDC] Input Voltage | ±12～±18 | ±12～±18 | ±12～±18 |
| 消耗电流[mA] Static current consumption | ≤±16 | ≤±16 | ≤±16 |
| 功耗[mW] Quiescent Power [mW] @ ±15 VDC | ≤480 | ≤480 | ≤480 |
| 绝缘电阻[MΩ] insulation resistance | ≥100 | ≥100 | ≥100 |
| 物理指标 Physical index | SNJ-3000-030 | SNJ-3000-020 | SNJ-3000-010 |
| 重量[grams] Weight | ≤80 | ≤80 | ≤80 |
| 尺寸[mm] size | Φ25.4×31 | Φ25.4×31 | Φ25.4×31 |
| 外壳材料 Case Material | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
